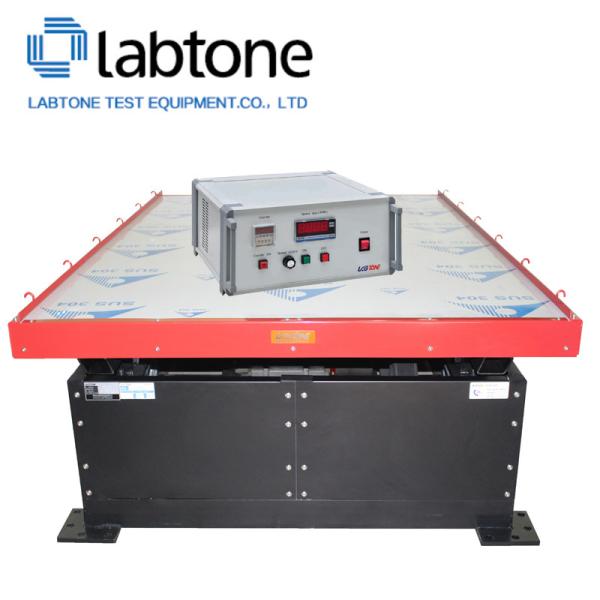

2000kg Package Mechnical Shaker Table Perform ASTM D4728 ASTM D999

  • 1
  • 2
  • 3

Brand Name : LABTONE

Model Number : YST2000

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 Sets Per Month

Delivery Time : 30 working days

Packaging Details : International wooden case

Payload : 2000 Kg

Frequency : 2~5Hz(120~300)RPM

Vibration Pattern : Rotation, 30° Unbalance Vibration(asynchronous)

Table Size : 1500 X 1500

Amplitude : 1 Inch (25.4MM) Fixed

Power Supply : AC 380V±10% 50Hz

Highlight : vibration shaker table systems, vibration shaker table

Contact Now

Description and Application
The YST 2000 performs repetitive shock, loose load, or bounce tests in accordance with ISTA, ASTM, TAPPI, ISO, MIL-STD, UN, DOT, and other industry, government, and international standards. The YST2000 operates on an eccentric cam principle, and can be easily adjusted to perform circular-synchronous or vertical linear motions


Standard features

  • Rotary (Synchronous) Motion (Standard)
  • Digital LCD Speed Display
  • Digital Timer w/ Test Settings & Expiration
  • Infinitely Variable Frequency Adjustment throughout the 2-5 Hz Range
  • Adjustable High Back Fences
  • Low Front Fences
  • Conveniently Mounted Standard Controls
  • Movable Floor Stand
  • Motor Controls Pre-Wired Per Customer Specifications
  • Hard Decking for Excellent Wear Resistance
  • 100# – 400# & 1000# – 2000# Capacity

Optional features

  • Non-Synchronous Motion (N/S)
  • Vertical Linear Motion (V/L)
  • Non – Standard Voltage
  • Expanded Table
  • CE compliant




Specifications

Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)		 100 200 500 1000 2000
Table Size(mm) 1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz






















Customer Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
