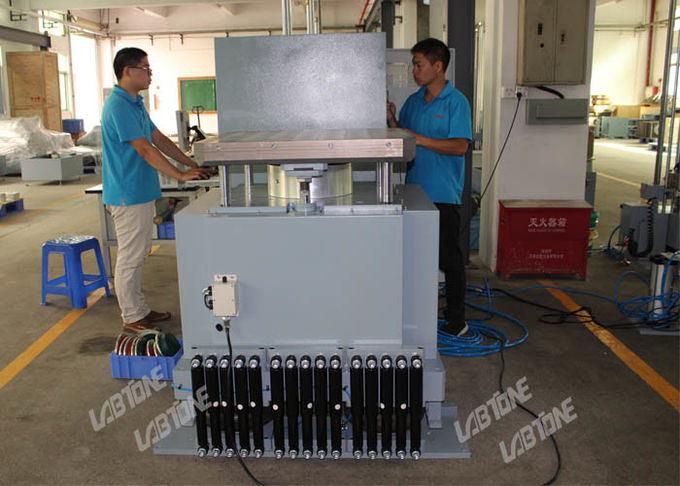

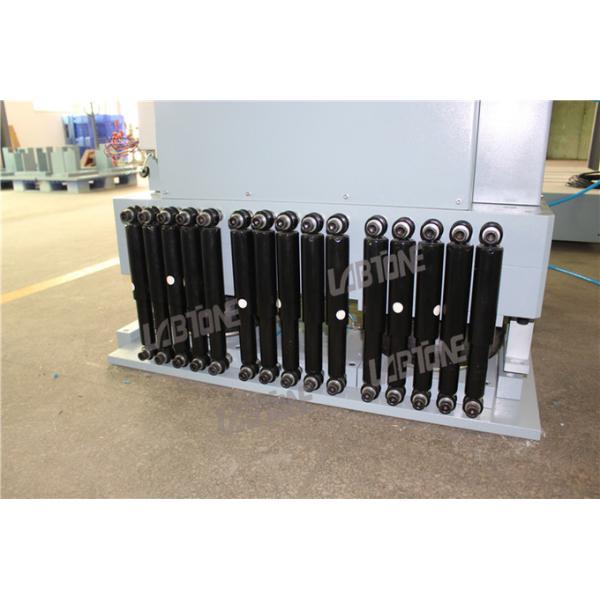

SKM800 Bump Test Machine For Repeated Bump Testing Of Components And Electronic

  • 1
  • 2
  • 3

Brand Name : LABTONE

Model Number : SKM800

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 30-35 working days

Packaging Details : International wooden case

Model : SKM800

Table Size : 800*800mm

ax. Payload : 200kg

Wave Form : Haf Sine Pulse

Acceleration Range : 5-100 G

Pulse Duration : 6~18ms

Highlight : Repeat Impact Testing Bump Machine, Repeated Impact Bump Test Machine, Electronic Bump Test Machine

Contact Now

Introduction

Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.

SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.

Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications

Model SKM500 SKM700 SKM800 SKM1000
Table size(mm) 500*700 700*800 800*800 1000*1000
Payload(kg) 50 100 200 500
Wave form Half sine pulse
Acceleration range(G) 5-120 5-100 5-100 5-80
Pluse duration(ms) 6--18
Bump repetition frequency 1-120 1-120 1-120 1-80
Drop height range 5-120mm 5-120mm 5-120mm 5-180mm
Max velocity variation 2.2m/s 2.2m/s 2.6m/s 2.8m/s
Machine dimension(mm) 750*660*880 900*900*800 900*960*800 1200*1150*860
Machine weight(kg) 1000 1260 2160 3660
Power & Air supply AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder
Standards GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

Customer Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
